Golang切片扩容学习笔记

发表于： 分类于：
字数： 2600 阅读：≈ 6分钟 浏览： 评论：

在学习golang切片时看到说golang的扩容机制是小于1024时进行double,超过1024后每次增加1/4，但是自己尝试后并非如此，于是扒了下golang的源码研究一番。

代码演示

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

package main

import "fmt"

func main() {
	arr := []int{0}
	lastCap := cap(arr)
	fmt.Println("cap：", lastCap)
	for i := 0; i < 10000; i++ {
		arr = append(arr, i)
		if lastCap != cap(arr) {
			fmt.Println("cap：", cap(arr))
			lastCap = cap(arr)
		}
	}
}

cap： 1
cap： 2
cap： 4
cap： 8
cap： 16
cap： 32
cap： 64
cap： 128
cap： 256
cap： 512
cap： 848
cap： 1280
cap： 1792
cap： 2560
cap： 3408
cap： 5120
cap： 7168
cap： 9216
cap： 12288

一开始确实成指数上涨，每次double，但是512以后变不是1024，而变成了848。

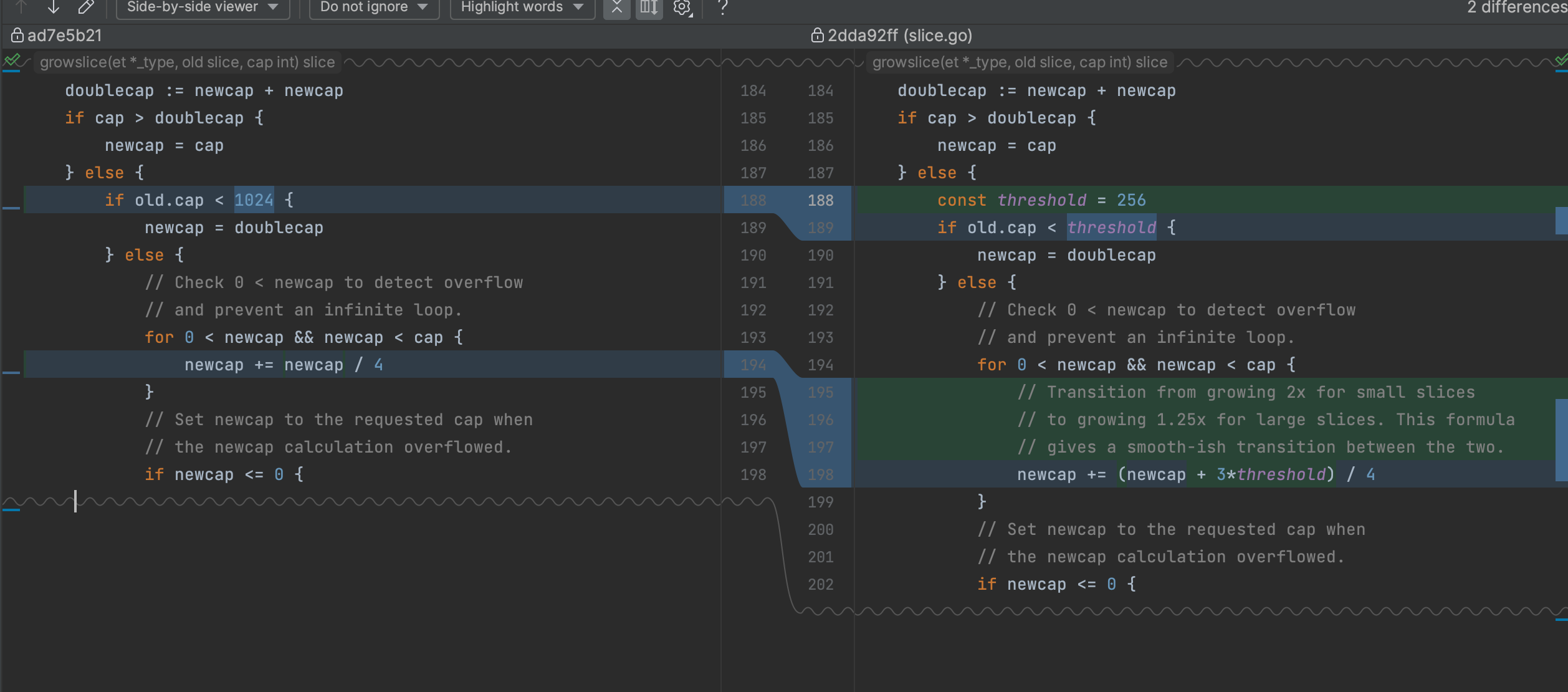

看一下slice.go的更新日志 发现在2021年9月8日有一个更新记录

此处可以发现扩容机制发生了变化

源码

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159

// growslice allocates new backing store for a slice.
//
// arguments:
//
//	oldPtr = pointer to the slice's backing array
//	newLen = new length (= oldLen + num)
//	oldCap = original slice's capacity.
//	   num = number of elements being added
//	    et = element type
//
// return values:
//
//	newPtr = pointer to the new backing store
//	newLen = same value as the argument
//	newCap = capacity of the new backing store
//
// Requires that uint(newLen) > uint(oldCap).
// Assumes the original slice length is newLen - num
//
// A new backing store is allocated with space for at least newLen elements.
// Existing entries [0, oldLen) are copied over to the new backing store.
// Added entries [oldLen, newLen) are not initialized by growslice
// (although for pointer-containing element types, they are zeroed). They
// must be initialized by the caller.
// Trailing entries [newLen, newCap) are zeroed.
//
// growslice's odd calling convention makes the generated code that calls
// this function simpler. In particular, it accepts and returns the
// new length so that the old length is not live (does not need to be
// spilled/restored) and the new length is returned (also does not need
// to be spilled/restored).
func growslice(oldPtr unsafe.Pointer, newLen, oldCap, num int, et *_type) slice {
	oldLen := newLen - num
	if raceenabled {
		callerpc := getcallerpc()
		racereadrangepc(oldPtr, uintptr(oldLen*int(et.size)), callerpc, abi.FuncPCABIInternal(growslice))
	}
	if msanenabled {
		msanread(oldPtr, uintptr(oldLen*int(et.size)))
	}
	if asanenabled {
		asanread(oldPtr, uintptr(oldLen*int(et.size)))
	}

	if newLen < 0 {
		panic(errorString("growslice: len out of range"))
	}

	if et.size == 0 {
		// append should not create a slice with nil pointer but non-zero len.
		// We assume that append doesn't need to preserve oldPtr in this case.
		return slice{unsafe.Pointer(&zerobase), newLen, newLen}
	}

	newcap := oldCap
	doublecap := newcap + newcap
	if newLen > doublecap {
		newcap = newLen
	} else {
		const threshold = 256
		if oldCap < threshold {
			newcap = doublecap
		} else {
			// Check 0 < newcap to detect overflow
			// and prevent an infinite loop.
			for 0 < newcap && newcap < newLen {
				// Transition from growing 2x for small slices
				// to growing 1.25x for large slices. This formula
				// gives a smooth-ish transition between the two.
				newcap += (newcap + 3*threshold) / 4
			}
			// Set newcap to the requested cap when
			// the newcap calculation overflowed.
			if newcap <= 0 {
				newcap = newLen
			}
		}
	}

	var overflow bool
	var lenmem, newlenmem, capmem uintptr
	// Specialize for common values of et.size.
	// For 1 we don't need any division/multiplication.
	// For goarch.PtrSize, compiler will optimize division/multiplication into a shift by a constant.
	// For powers of 2, use a variable shift.
	switch {
	case et.size == 1:
		lenmem = uintptr(oldLen)
		newlenmem = uintptr(newLen)
		capmem = roundupsize(uintptr(newcap))
		overflow = uintptr(newcap) > maxAlloc
		newcap = int(capmem)
	case et.size == goarch.PtrSize:
		lenmem = uintptr(oldLen) * goarch.PtrSize
		newlenmem = uintptr(newLen) * goarch.PtrSize
		capmem = roundupsize(uintptr(newcap) * goarch.PtrSize)
		overflow = uintptr(newcap) > maxAlloc/goarch.PtrSize
		newcap = int(capmem / goarch.PtrSize)
	case isPowerOfTwo(et.size):
		var shift uintptr
		if goarch.PtrSize == 8 {
			// Mask shift for better code generation.
			shift = uintptr(sys.TrailingZeros64(uint64(et.size))) & 63
		} else {
			shift = uintptr(sys.TrailingZeros32(uint32(et.size))) & 31
		}
		lenmem = uintptr(oldLen) << shift
		newlenmem = uintptr(newLen) << shift
		capmem = roundupsize(uintptr(newcap) << shift)
		overflow = uintptr(newcap) > (maxAlloc >> shift)
		newcap = int(capmem >> shift)
		capmem = uintptr(newcap) << shift
	default:
		lenmem = uintptr(oldLen) * et.size
		newlenmem = uintptr(newLen) * et.size
		capmem, overflow = math.MulUintptr(et.size, uintptr(newcap))
		capmem = roundupsize(capmem)
		newcap = int(capmem / et.size)
		capmem = uintptr(newcap) * et.size
	}

	// The check of overflow in addition to capmem > maxAlloc is needed
	// to prevent an overflow which can be used to trigger a segfault
	// on 32bit architectures with this example program:
	//
	// type T [1<<27 + 1]int64
	//
	// var d T
	// var s []T
	//
	// func main() {
	//   s = append(s, d, d, d, d)
	//   print(len(s), "\n")
	// }
	if overflow || capmem > maxAlloc {
		panic(errorString("growslice: len out of range"))
	}

	var p unsafe.Pointer
	if et.ptrdata == 0 {
		p = mallocgc(capmem, nil, false)
		// The append() that calls growslice is going to overwrite from oldLen to newLen.
		// Only clear the part that will not be overwritten.
		// The reflect_growslice() that calls growslice will manually clear
		// the region not cleared here.
		memclrNoHeapPointers(add(p, newlenmem), capmem-newlenmem)
	} else {
		// Note: can't use rawmem (which avoids zeroing of memory), because then GC can scan uninitialized memory.
		p = mallocgc(capmem, et, true)
		if lenmem > 0 && writeBarrier.enabled {
			// Only shade the pointers in oldPtr since we know the destination slice p
			// only contains nil pointers because it has been cleared during alloc.
			bulkBarrierPreWriteSrcOnly(uintptr(p), uintptr(oldPtr), lenmem-et.size+et.ptrdata)
		}
	}
	memmove(p, oldPtr, lenmem)

	return slice{p, newLen, newcap}
}

由于我们每次都是append 1个元素进入，所以后面不会出现newLen > doublecap的情况，都会走进下面的分支

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

		const threshold = 256
		if oldCap < threshold {
			newcap = doublecap
		} else {
			// Check 0 < newcap to detect overflow
			// and prevent an infinite loop.
			for 0 < newcap && newcap < newLen {
				// Transition from growing 2x for small slices
				// to growing 1.25x for large slices. This formula
				// gives a smooth-ish transition between the two.
				newcap += (newcap + 3*threshold) / 4
			}
			// Set newcap to the requested cap when
			// the newcap calculation overflowed.
			if newcap <= 0 {
				newcap = newLen
			}
		}

threshold中文的意思是门槛,此处也是很贴切了。
当oldcap是256时带入分支，可以得到newcap值为512。 当oldcap是512时带入分支，通过计算可知newcap=512+(512+256*3)/4=832 但是前面的结果是848，和计算的结果并不一致，那是什么原因导致的呢？

内存对齐

继续看后面的代码，可以发现，在确定最后的newcap值前要进行内存对齐。

不同类型的切片其内存对齐的代码是不同的。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

// Returns size of the memory block that mallocgc will allocate if you ask for the size.
func roundupsize(size uintptr) uintptr {
	if size < _MaxSmallSize {
		if size <= smallSizeMax-8 {
			return uintptr(class_to_size[size_to_class8[divRoundUp(size, smallSizeDiv)]])
		} else {
			return uintptr(class_to_size[size_to_class128[divRoundUp(size-smallSizeMax, largeSizeDiv)]])
		}
	}
	if size+_PageSize < size {
		return size
	}
	return alignUp(size, _PageSize)
}
1

var class_to_size = [_NumSizeClasses]uint16{0, 8, 16, 24, 32, 48, 64, 80, 96, 112, 128, 144, 160, 176, 192, 208, 224, 240, 256, 288, 320, 352, 384, 416, 448, 480, 512, 576, 640, 704, 768, 896, 1024, 1152, 1280, 1408, 1536, 1792, 2048, 2304, 2688, 3072, 3200, 3456, 4096, 4864, 5376, 6144, 6528, 6784, 6912, 8192, 9472, 9728, 10240, 10880, 12288, 13568, 14336, 16384, 18432, 19072, 20480, 21760, 24576, 27264, 28672, 32768}

之前我们计算出来的长度是832 换算成bit后是 6656 在class_to_size向上取整后为 6784 6784/8= 848

这就解释了为什么新的cap是848

其他类型切片扩容容量(append步长为1)

string int64 float64

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

package main

import "fmt"

func main() {

	arr := []string{"0"}
	lastCap := cap(arr)
	fmt.Println("cap：", lastCap)
	for i := 0; i < 5000; i++ {
		arr = append(arr, "0")
		if lastCap != cap(arr) {
			fmt.Println("cap：", cap(arr))
			lastCap = cap(arr)
		}
	}
}

cap： 1
cap： 2
cap： 4
cap： 8
cap： 16
cap： 32
cap： 64
cap： 128
cap： 256
cap： 512
cap： 848
cap： 1280
cap： 1792
cap： 2560
cap： 3584
cap： 5120

int32 float32

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

package main

import "fmt"

func main() {

	arr := []int32{0}
	lastCap := cap(arr)
	fmt.Println("cap：", lastCap)
	for i := 0; i < 5000; i++ {
		arr = append(arr, 0)
		if lastCap != cap(arr) {
			fmt.Println("cap：", cap(arr))
			lastCap = cap(arr)
		}
	}
}

cap： 1
cap： 2
cap： 4
cap： 8
cap： 16
cap： 32
cap： 64
cap： 128
cap： 256
cap： 512
cap： 864
cap： 1344
cap： 2048
cap： 3072
cap： 4096
cap： 5440

bool

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

package main

import "fmt"

func main() {

	arr := []bool{true}
	lastCap := cap(arr)
	fmt.Println("cap：", lastCap)
	for i := 0; i < 5000; i++ {
		arr = append(arr, true)
		if lastCap != cap(arr) {
			fmt.Println("cap：", cap(arr))
			lastCap = cap(arr)
		}
	}
}

cap： 1
cap： 8
cap： 16
cap： 32
cap： 64
cap： 128
cap： 256
cap： 512
cap： 896
cap： 1408
cap： 2048
cap： 3072
cap： 4096
cap： 5376
